Forged Steel Floating Ball Valves

Forged Steel Floating Ball Valves
Forged Steel Floating Ball Valves

Features

Size: 1/2"~4"
Class: 150~2500
Two Pieces Forged Steel Body
Floating Ball, Full & Reduced Bore
Anti-Static Device
Blow-out Proof Stem
Fire Safe Design
Low Emission

Design: ASME B16.34/BS 5351
Face to Face: ASME B16.10
End to End: ASME B16.10
End Flange: ASME B16.5
BW End: ASME B16.25
Test: API 598/ BS 6755
Fire Safe Test: API 607/API 6FA
Special: NACE MR-01-75

Materials

Materials of Forged Steel Floating Ball Valves
Materials of Forged Steel Floating Ball Valves

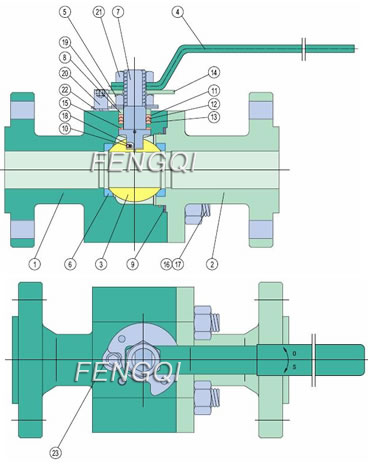

No. Part Material
1 Body ASTM A105, ASTM A182-F316, ASTM A350-LF2
2 Adapter ASTM A105, ASTM A182-F316, ASTM A350-LF2
3 Ball ASTM A105/ENP, ASTM A182-F316
4 Lever Carbon Steel
5 Locked washer Carbon Steel, Stainless Steel
6 Seat PTFE / Nylon
7 Stem ASTM A182-F6a, ASTM A182-F316
8 Gland ASTM A276-410, ASTM A182-F316
9 * Body Gasket 304SS+Graphite, 316SS+Graphite
10 Steel Ball Stainless Steel
11 * Top Packing PTFE / Graphite
12 * Middle Packing PTFE / Graphite
13 * Bottom Packing PTFE / Graphite
14 Stop Plate Carbon Steel, Stainless Steel
15 Thrust Washer PTFE
16 Body Stud ASTM A193-B7, ASTM A193-B8, ASTM A320-L7M
17 Body Nut ASTM A194-2H, ASTM A194-8, ASTM A194-7M
18 Antistatic Spring Stainless Steel
19 Dished Spring Alloy Steel, Stainless Steel
20 Screw Carbon Steel, Stainless Steel
21 Nut Carbon Steel, Stainless Steel
22 Washer Carbon Steel, Stainless Steel
23 Locked Plate Carbon Steel, Stainless Steel

ASME Pressure Class 150 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Full Bore-Dimensions and Weights

Size D L H W Weight
in mm mm mm mm Kg
1/2 13 108 75 130 2.8
3/4 19 117 84 170 3.7
1 25 127 90 170 5.3
1-1/2 38 165 127 250 8.3
2 51 178 140 250 11.2
2-1/2 64 191 164 350 18.4
3 76 203 177 350 23
4 102 229 206 420 39.3

ASME Pressure Class 150 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Reduce Bore-Dimensions and Weights

Size d D L H W Weight
in mm mm mm mm mm Kg
3/4*1/2 13 19 117 75 130 3.5
1*3/4 19 25 127 84 170 5
1-1/2*1 25 38 165 90 170 7.5
2*1-1/2 38 51 178 127 250 10
2-1/2*2 51 64 191 140 250 16
3*2 51 76 203 140 250 21
4*3 76 102 229 177 350 35
6*4 102 152 267 206 420 73

ASME Pressure Class 300 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Full Bore-Dimensions and Weights

Size D L H W Weight
in mm mm mm mm Kg
1/2 13 108 75 130 3
3/4 19 117 84 170 4
1 25 127 90 170 6.6
1-1/2 38 165 127 250 12.9
2 51 178 140 250 18.9
2-1/2 64 191 164 350 28
3 76 203 177 350 39
4 102 229 206 420 60

ASME Pressure Class 300 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Reduce Bore-Dimensions and Weights

Size d D L H W Weight
in mm mm mm mm mm Kg
3/4*1/2 13 19 117 75 130 3.7
1*3/4 19 25 127 84 170 5.8
1-1/2*1 25 38 165 90 170 10.5
2*1-1/2 38 51 178 127 250 16.1
2-1/2*2 51 64 191 140 250 24.5
3*2 51 76 203 140 250 34.7
4*3 76 102 229 177 350 53
6*4 102 152 267 206 420 100

ASME Pressure Class 600 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Full Bore-Dimensions and Weights

Size D L H W Weight
in mm mm mm mm Kg
1/2 13 165 80 170 3.5
3/4 19 191 89 200 5
1 25 216 95 200 7.5
1-1/2 38 241 132 350 15
2 51 292 145 350 23
3 64 356 182 420 48
4 76 432 211 700 80

ASME Pressure Class 600 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Reduce Bore-Dimensions and Weights

Size d D L H W Weight
in mm mm mm mm mm Kg
3/4*1/2 13 19 229 75 140 7
1*3/4 19 25 254 91 180 9.5
1-1/2*1 25 38 305 108 250 16.5
2*1-1/2 38 51 368 133 400 23
3*2 51 76 381 150 500 42
4*3 76 102 457 165 500 65

ASME Pressure Class 900 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Full Bore-Dimensions and Weights

Size D L H W Weight
in mm mm mm mm Kg
1/2 13 216 75 140 5
3/4 19 229 91 180 8
1 25 254 108 250 10
1-1/2 38 305 133 400 20
2 51 368 150 500 30
3 76 381 160 500 55

ASME Pressure Class 900 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Reduce Bore-Dimensions and Weights

Size d D L H W Weight
in mm mm mm mm mm Kg
3/4*1/2 13 19 229 75 140 7
1*3/4 19 25 254 91 180 9.5
1-1/2*1 25 38 305 108 250 16.5
2*1-1/2 38 51 368 133 400 23
3*2 51 76 470 150 500 60
4*3 76 102 546 160 500 78

ASME Pressure Class 1500 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Full Bore-Dimensions and Weights

Size D L H W Weight
in mm mm mm mm Kg
1/2 13 216 75 140 5
3/4 19 229 91 180 8
1 25 254 108 250 10
1-1/2 38 305 133 400 20
2 51 368 150 500 30
3 76 470 160 500 65

ASME Pressure Class 1500 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Reduce Bore-Dimensions and Weights

Size d D L H W Weight
in mm mm mm mm mm Kg
3/4*1/2 13 19 229 75 140 7
1*3/4 19 25 254 91 180 9.5
1-1/2*1 25 38 305 108 250 16.5
2*1-1/2 38 51 368 133 400 23
3*2 51 76 470 150 500 60
4*3 76 102 546 160 500 78

ASME Pressure Class 2500 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Full Bore-Dimensions and Weights

Size D L H W Weight
in mm mm mm mm Kg
1/2 13 264 88 230 7.5
3/4 19 273 117 230 12
1 25 308 128 300 15
1-1/2 38 384 148 400 30
2 51 451 183 500 37.5

ASME Pressure Class 2500 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Reduce Bore-Dimensions and Weights

Size d D L H W Weight
in mm mm mm mm mm Kg
3/4*1/2 13 19 273 88 230 11
1*3/4 19 25 308 117 230 14
1-1/2*1 25 38 384 128 300 25
2*1-1/2 38 51 451 148 400 35
3*2 51 76 578 183 500 60
