Wafer Ball Valves

Features

Size: 1/2"~4"
Class: 150 Lb
One-Piece Cast Steel Body
Floating Ball, Full Bore
Anti-Static Device
Blow-out Proof Stem
Fire Safe Design
Emergency Sealant Injector

Materials

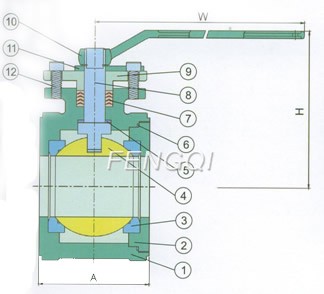

Materials of Wafer Ball Valves
Materials of Wafer Ball Valves
No. Part Material
1 Body A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
2 Screwed Cover A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
3 Seat PTFE RTPFE PEEK PPL
4 Ball A351-CF8, CF8M, CF3, CF3M, Duplex
5 Thrust Washer PTFE
6 Gasket PTFE Graphite
7 Packing PTFE Graphite
8 Stem ASTM A105+ENP A182-F6, F316, F316L, F304L,17-4PH, F51
9 Gland Flange A216-WCB A351-CF8
10 Lever A216-WCB
11 Limited Plate 1015+Cr. Carbon Steel+Cr.
12 Screw ASTM A193-B7, B8

ASME Pressure Class 150 Lb-One-Piece(1PC)-PTFE RTPFE PEEK PPL (Soft) Seated
Flanged Ends-Forged-Floating-Full Bore-Dimensions and Weights

Dimensions and Weights of Wafer Ball Valves
Size D A H W
in 150Lb PN16 10K
1/2 47 53 58 40 80 130
3/4 57 63 63 45 80 170
1 66 73 74 50 100 170
1-1/4 75 84 84 60 110 200
1-1/2 85 94 89 70 120 250
2 103 109 104 80 130 350
2-1/2 122 129 124 110 140 350
3 135 144 134 120 150 420
4 173 170 159 140 180
