Solenoid Float Control Valves

Features

Solenoid Float Control Valves is with normal open (normal close) Solenoid control equipment based on 100x Float Control Valves. So even if there is no electric power or the flow could not work, it can assure the water level is not beyond the set level and the electric float valve can preset the on/off water level to solve the problem of main valve's frequently opening/closing. This kind of valve is widely used in high building, feeding system, fire protection, at the inlet of water pool and water tower of enterprises.

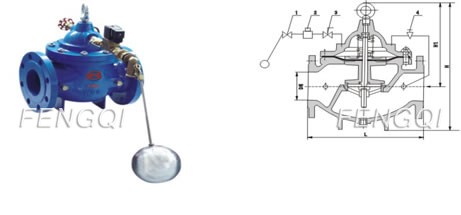

Solenoid Float Control Valves
Solenoid Float Control Valves

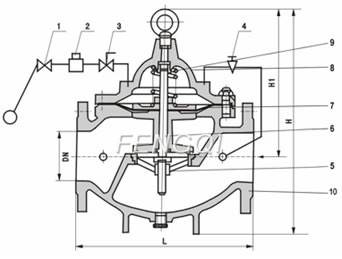

1. Float Ball Pilot Valve 2. Solenoid Valve 3. Ball Valve 4. Needle Valve

Technical Parameters

Nominal Pressure: 1.0, 1.6, 2.5MPa
Shell test pressure: 1.5, 2.4, 3.75MPa
Sealed test pressure : 1.1, 1.76, 2.75MPa
Suitable temperature: 80
Suitable medium: water, Sewage

Materials

Materials: Solenoid Float Control Valves
Serial No. Part Material
1 Little Ball Valve
2 Pilot Valve
3 Flow Adjustor
4 Needle Valve
5 Seat Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
6 Stem Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
7 Diaphragm Rubber
8 Cover Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
9 Spring Spring Steel
10 Body Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)

Dimensions

DNmm 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600 700 800
L 180 180 180 203 203 235 285 360 400 455 585 650 800 860 915 980 1075 1230 1300 1450
PN10 D 105 115 135 145 160 180 195 215 245 280 335 390 440 500 565 615 670 780 895 1010
D1 75 85 100 110 125 145 160 180 210 240 295 350 400 460 515 565 620 725 840 950
PN16 D 105 115 135 145 160 180 195 215 245 280 335 405 460 520 580 640 705 840 910 1020
D1 75 85 100 110 125 145 160 180 210 240 295 355 410 470 525 585 650 770 840 950
PN25 D 105 110 135 145 160 180 195 230 270 300 360 425 485 550 610 660 730 840 955 1070
D1 75 85 100 110 125 145 160 190 220 250 310 370 430 490 550 600 660 770 875 990
H 212 212 212 265 265 310 350 460 520 570 695 780 905 1025 1080 1030 1135 1270 1460 1640
H1 179 179 179 210 210 215 245 305 365 415 510 560 658 696 735 610 665 725 865 975

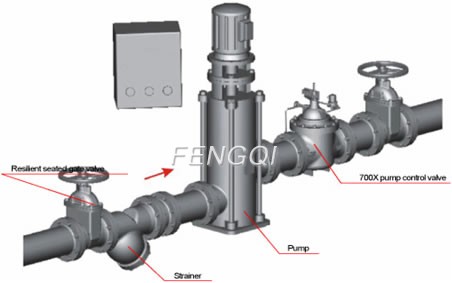

Typical Installation

Typical Installation of Solenoid Float Control Valves
